Specifications

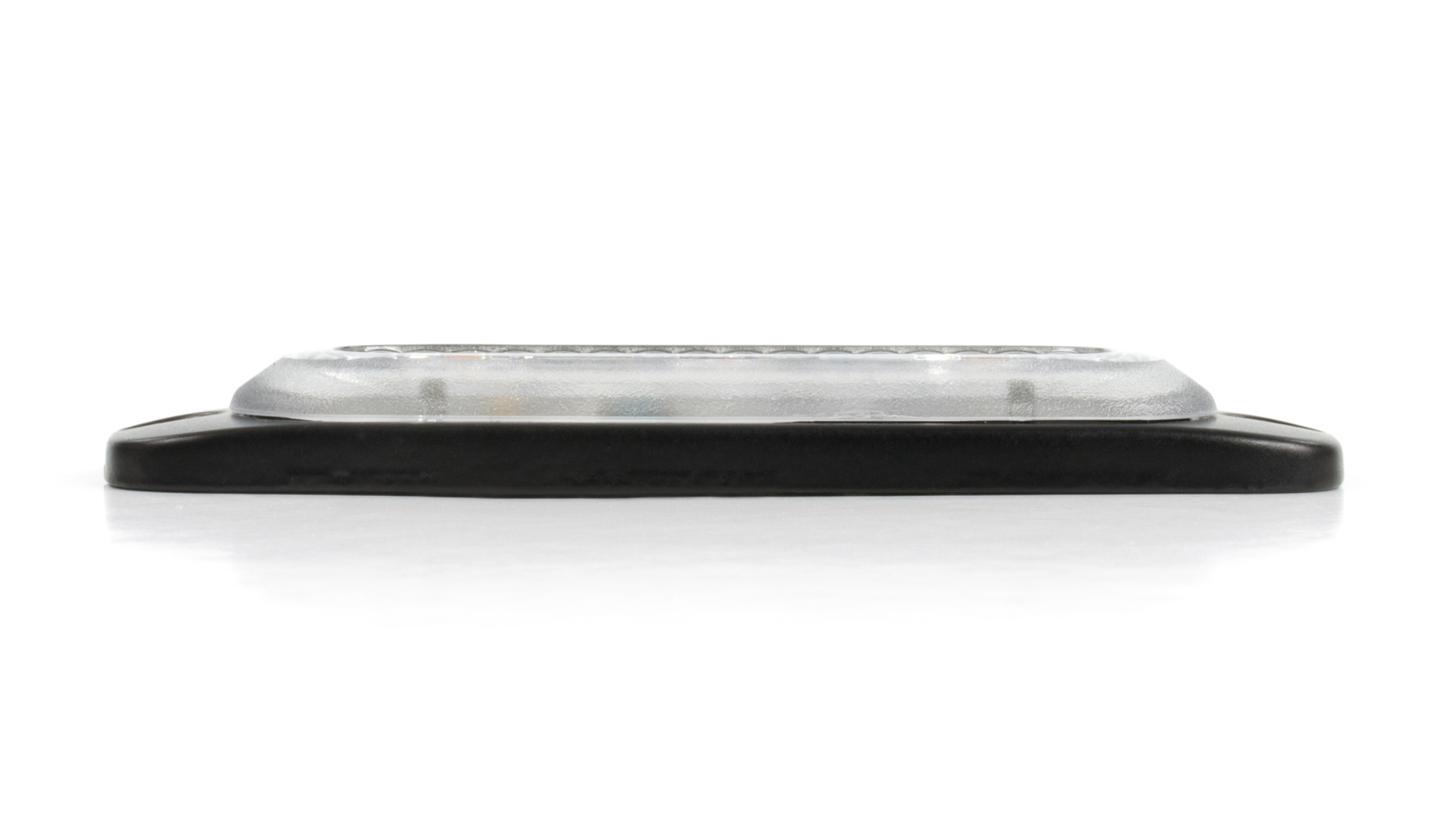

10.6mm super low-profile.
100,000 hours rated long-life LED.
Built-in 16 flash patterns, all self-contained.
Aluminium base for best durability and heat dissipation.
Multi-units synchronization in simultaneous or alternating flash.
Weatherproof and shockproof capability for all environment.
Slim base design for better visual aesthetic.
Non-volatile flash pattern memory.
Reverse polarity protection.Product Specifications

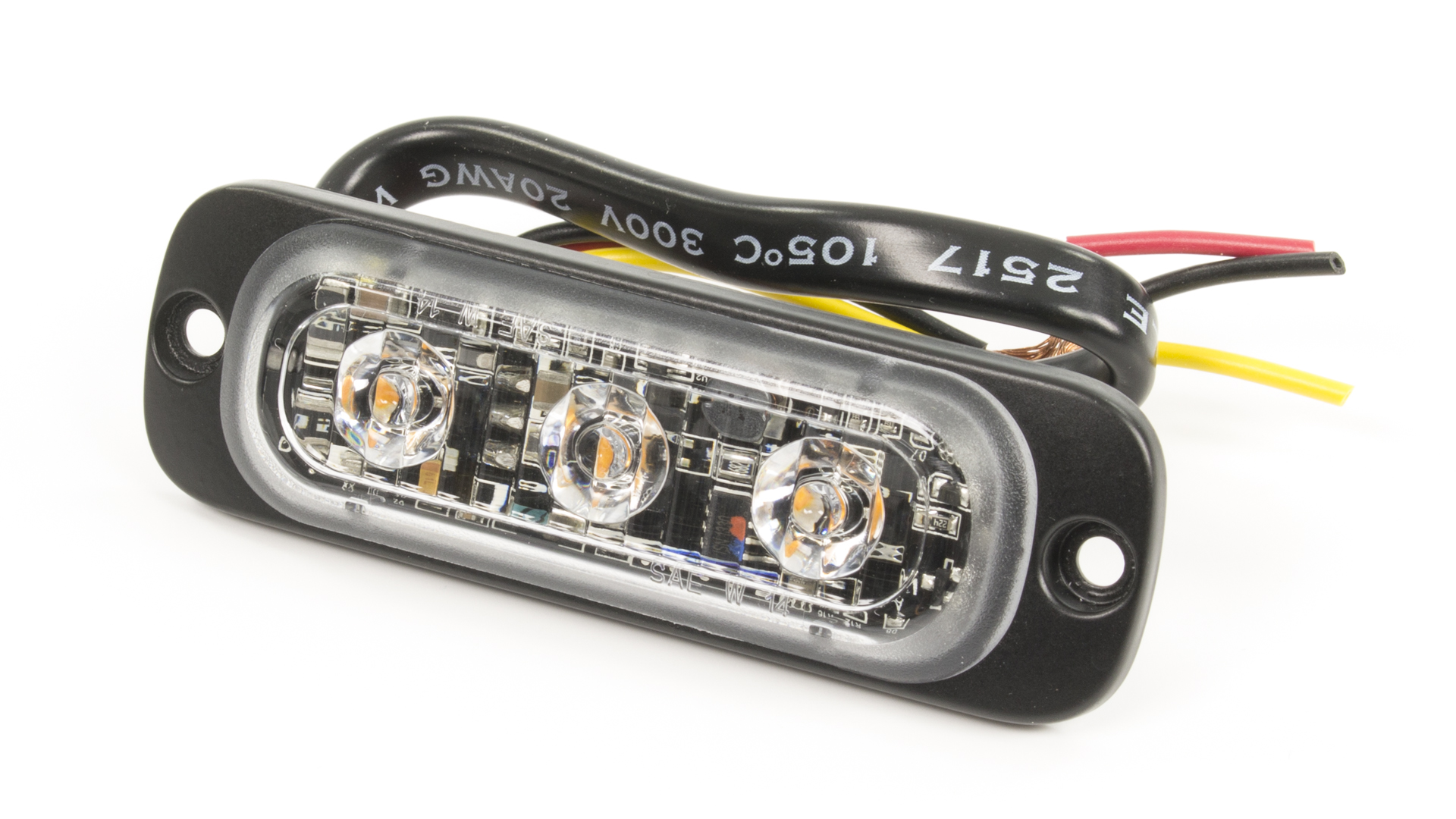

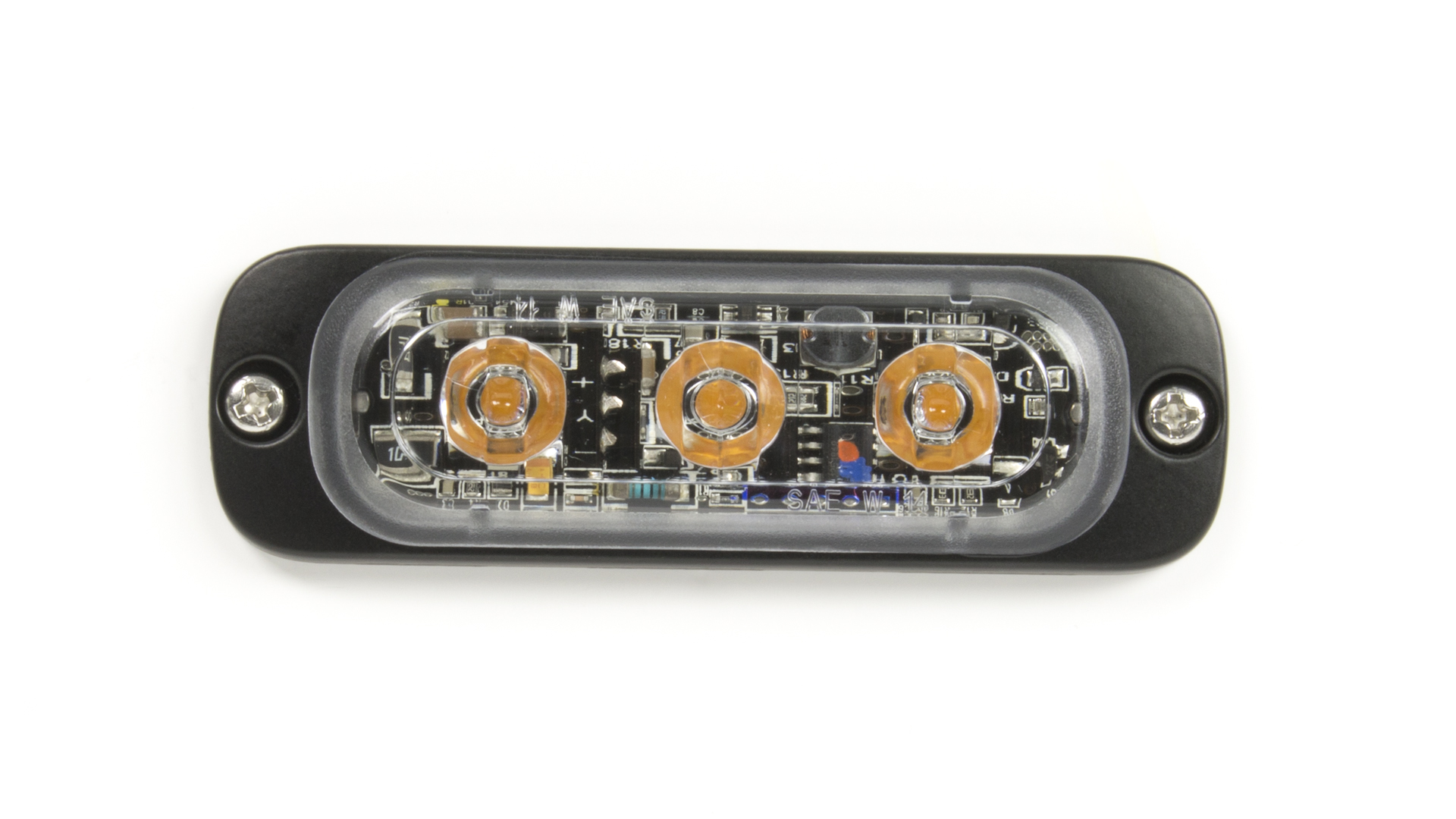

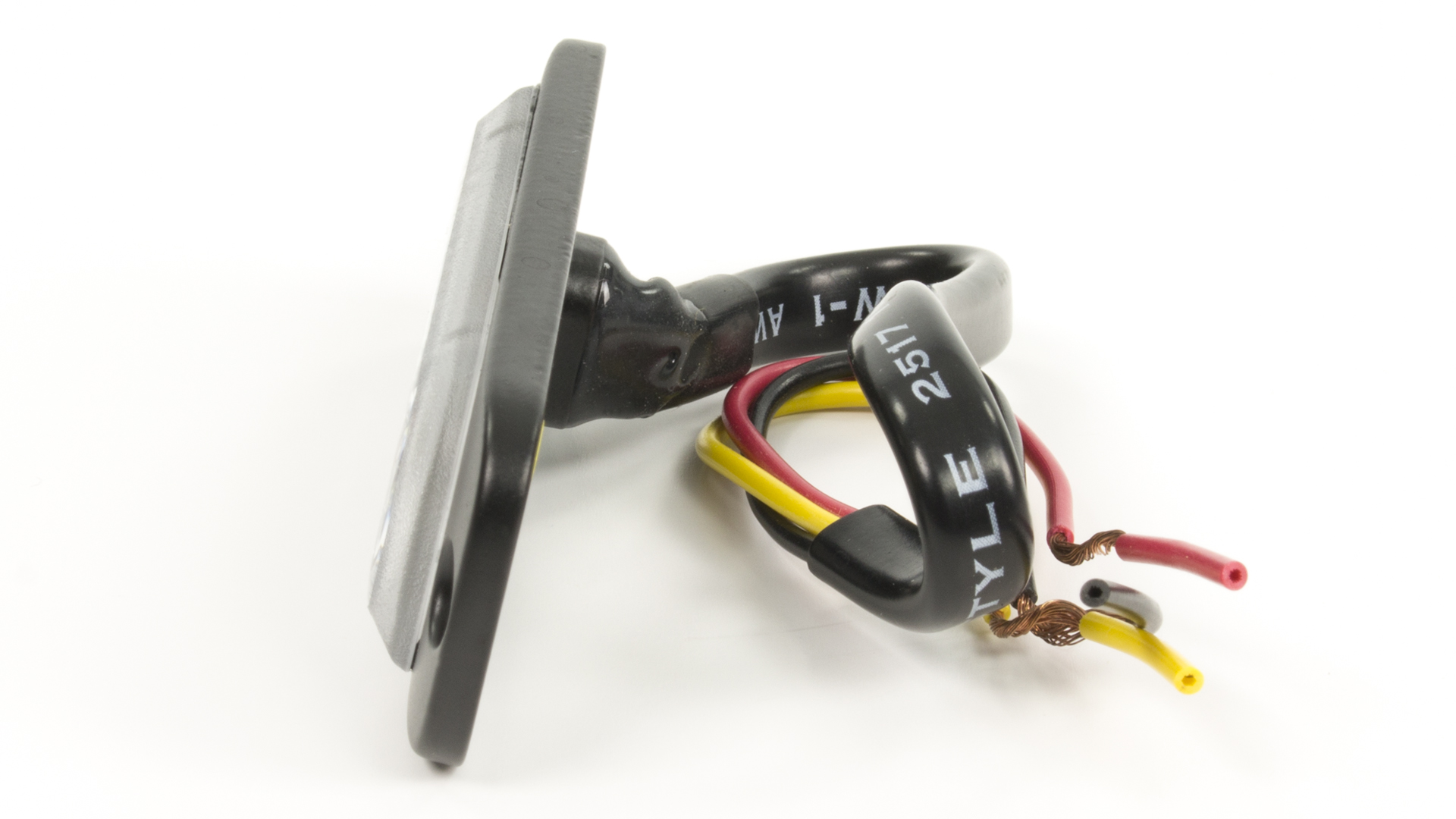

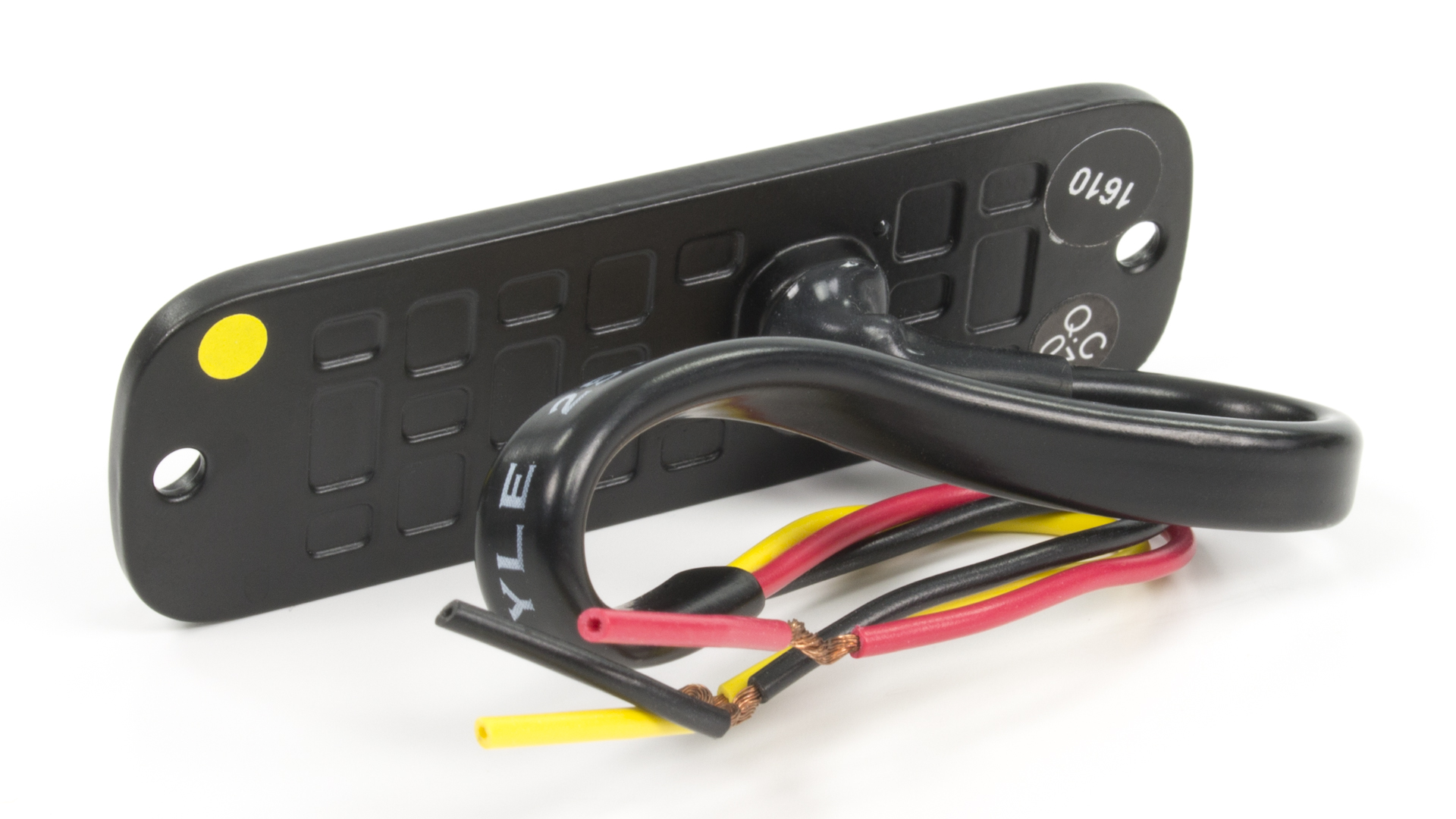

Product code 02160139 Product Name ST3 Warning Lighthead - Amber Categories Warning Lamps, Super Thin, Directionals, ST3, Modules Product Type Products Dimensions Length 86mm (3.38") Dimensions Height 27mm (1.06") Dimensions Width 10.6mm (0.41") Colour Type Single Colour Maximum Current 0.59A@12VDC / 0.3A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 7.1W Synchronisation 15 Unit Sync LED Colour Amber LEDs Fuse Rating 1A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XA1) Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 3x LEDs IP Rating IPX8 Flash Patterns 1 Flash Pattern Wire Length 265mm Mounting Orientation Horizontal Gross Weight 0.05kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -

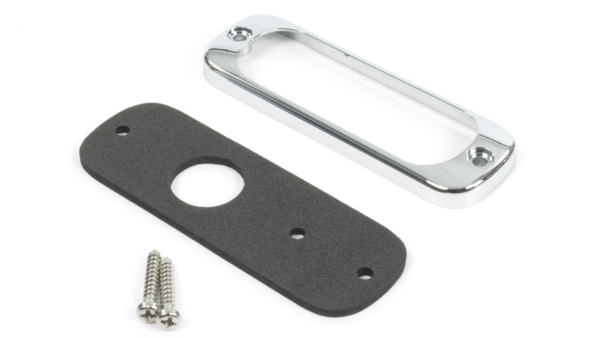

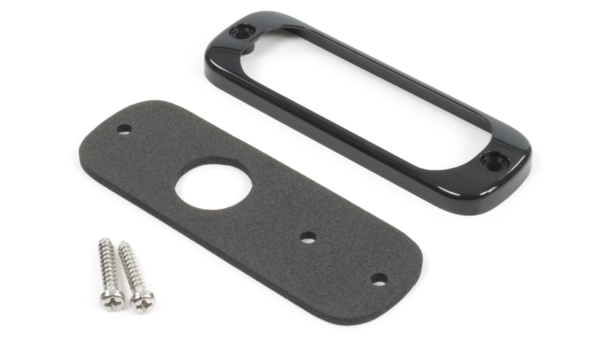

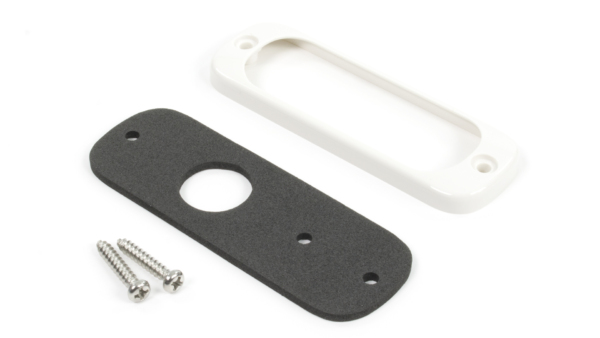

Spare Parts
-
-

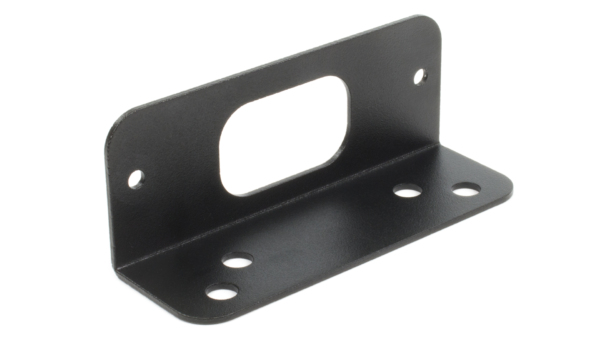

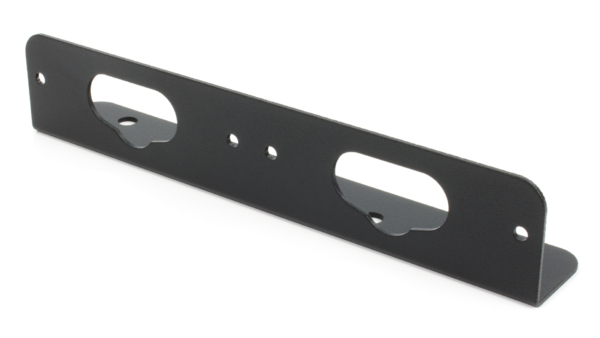

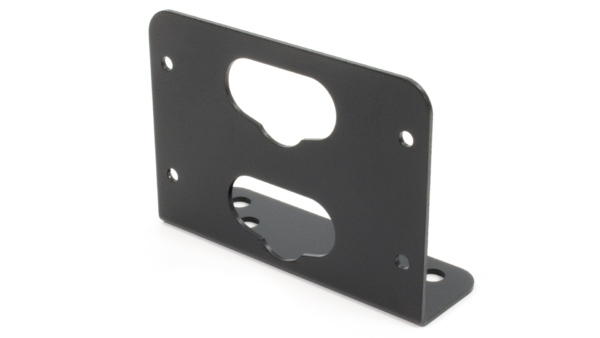

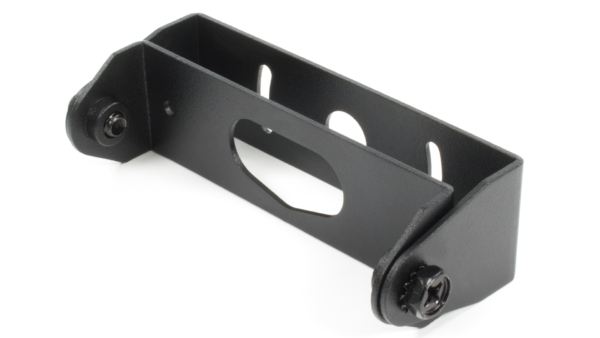

Mounting
-
