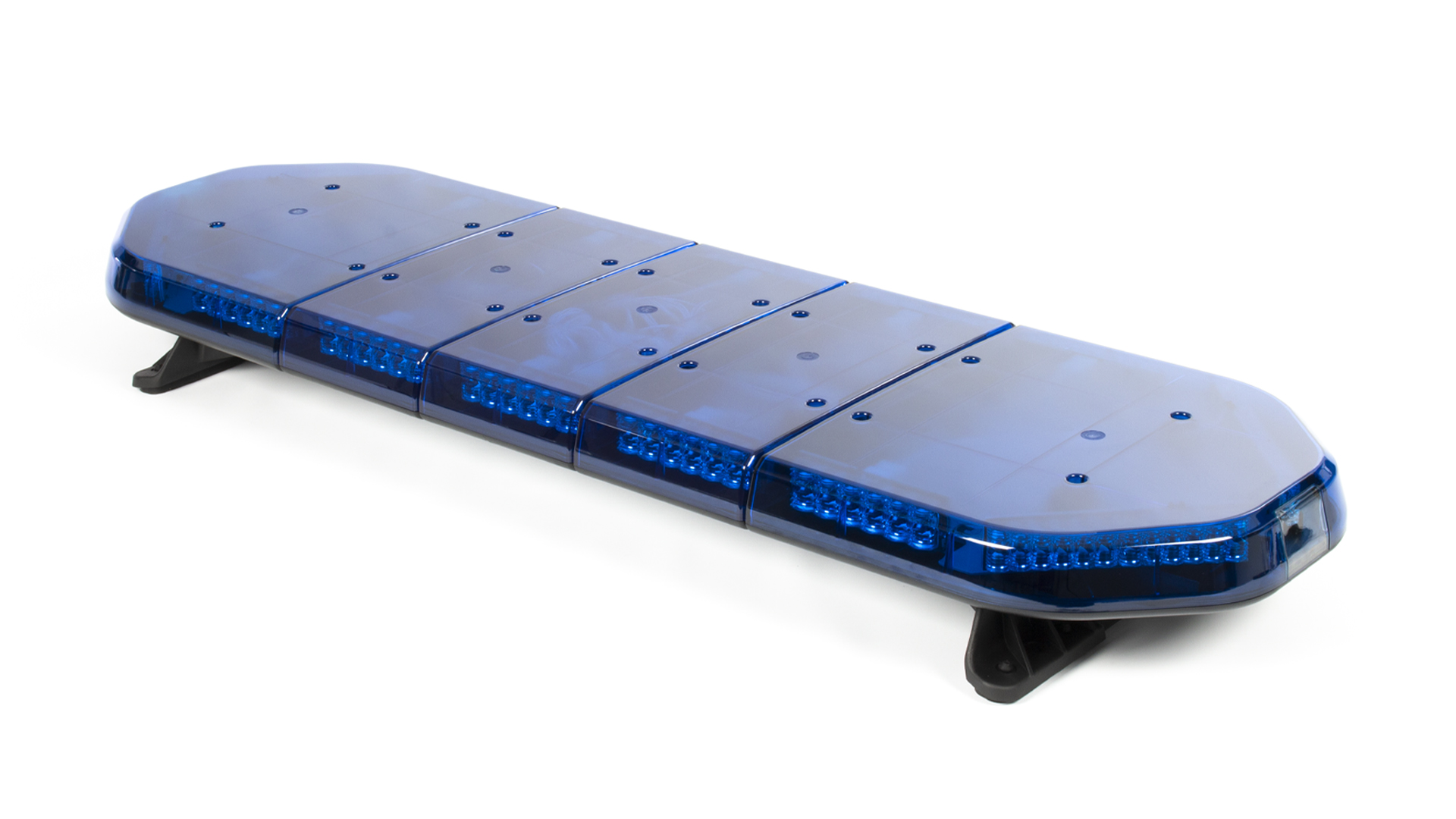

Legion HE Lightbar, 1087mm (42.8″), 72x BLUE LEDs, BLUE LENSES, ECE R10, ECE R65 (TB2), IPX4K, D-Fuser Optics, 12 Flash Patterns, 2 Cable Harness (16 Function/4 Power), Standard Feet, 12VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications
Product code 06320263 Product Name Legion HE 1087mm (42.8") - BB (12VDC) Categories Warning Lamps, Lightbars, Legion HE Standard, Legion High End, Legion Product Type Products Configurations (available Traffic Director, Stop / Tail / Turn, Illuminated Centre, Steady On, Cruise Light, Alley Lights, Take-Downs Default Functions Traffic Director - Rear Left Arrow., Hi/Low Power (50%, Traffic Director - Rear Right Arrow., Right-Side Alley Light, Left-Side Alley Light, Illuminated Centre Section, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Take-Down Lights (2 heads, Stop / Tail / Turn, Control Box Transmission Line, Cruise Light Mode, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Length 1087mm (42.8") Dimensions Height 59mm (2.3") Dimensions Width 331mm (13") Colour Type Single Colour Lightbar Length 1087mm (42.8") LED Colour Blue LEDs Lens Colour Blue Lens (Dark) Compliance ECE-R10, ECE-R65 (TB2), SAE J595 Class 1, SAE J845 Class 1, CA13 Input Voltage 12VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power/2 Speaker) LED Quantity 72x LEDs Lighthead Quantity 8x Lightheads IP Rating IPX4K Flash Patterns 12 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Net Weight 12.8kg Gross Weight 13.8kg Dummy Bracket Qty 6x Dummy Plates Warranty 5 Year Warranty -

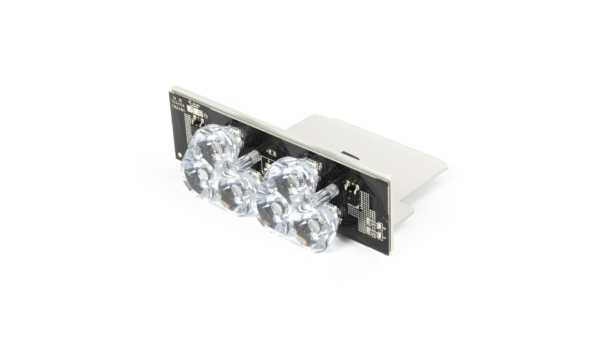

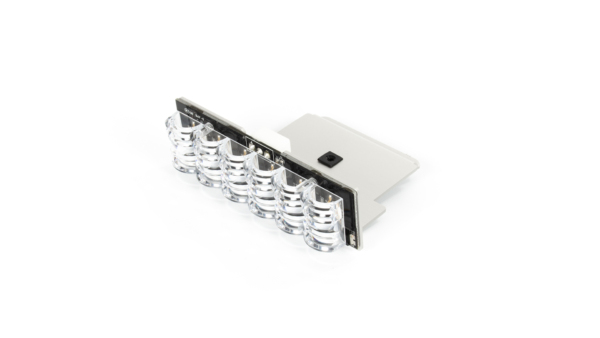

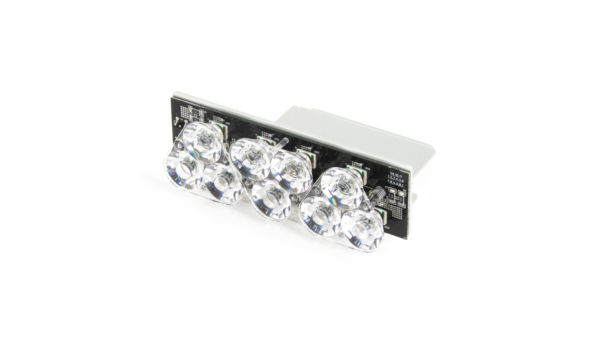

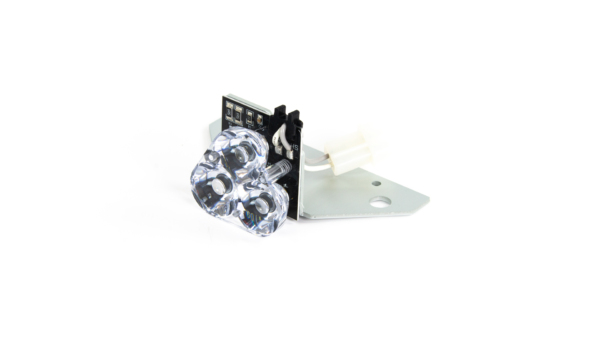

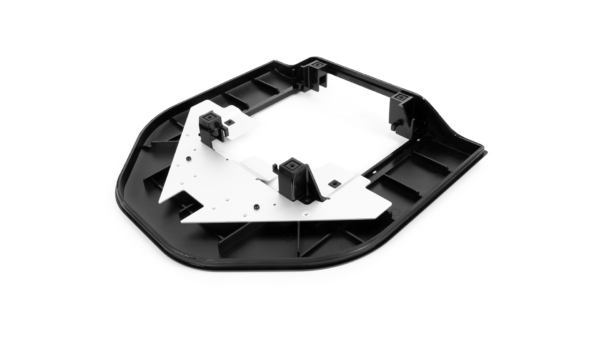

Spare Parts
-
-

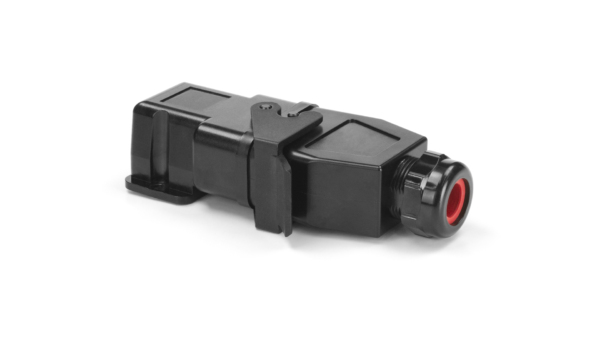

Accessories
-
-

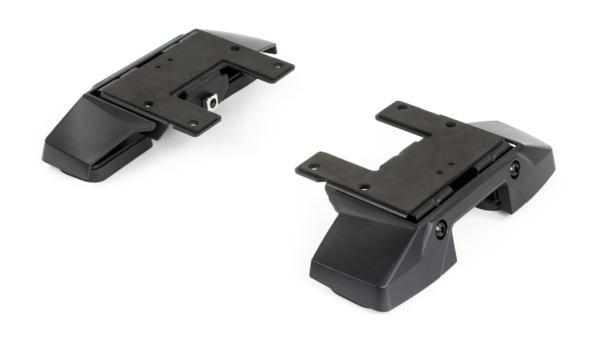

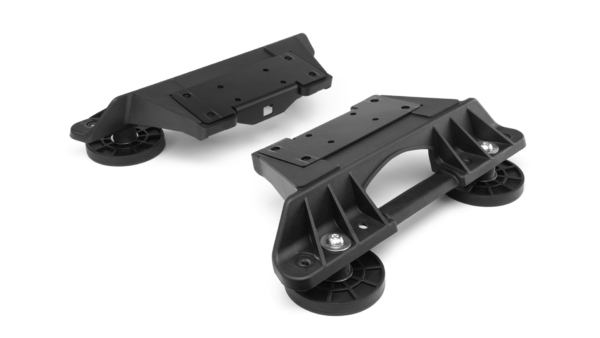

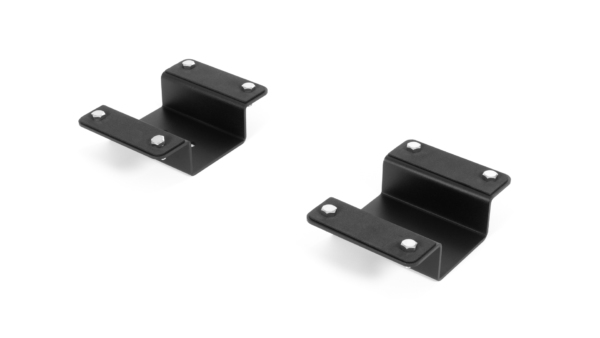

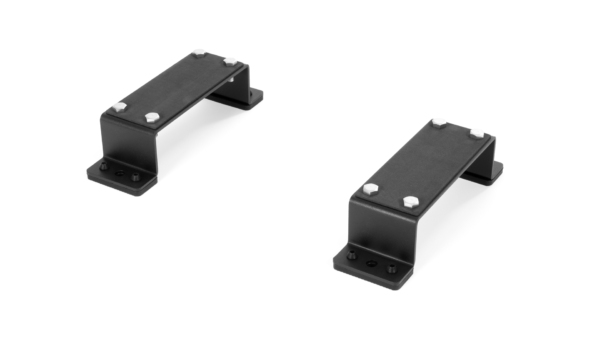

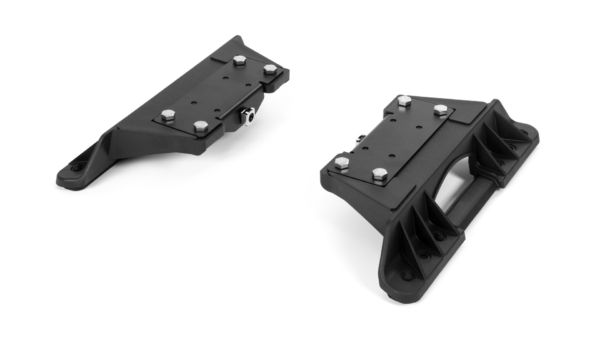

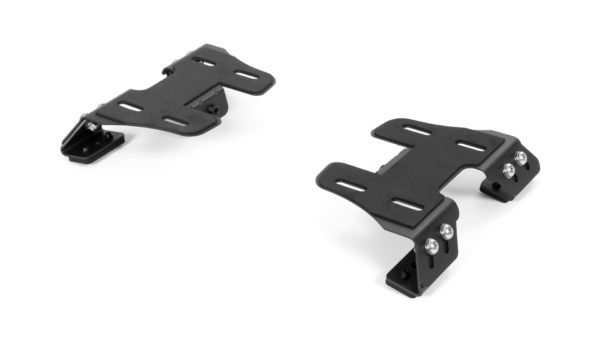

Mounting
-
