Aegis Dual Colour Lightbar, 1054mm (41.5″), 72x AMBER/BLUE LEDs, BLACK COVERS, ECE R10, ECE R65 (TA2/TB2), IPX4K, Full Functionality, D-Fuser Optics, 15 Flash Patterns, 2 Cable Harness (16 Function/4 Power), Standard Feet, 12VDC.
-
Specifications
3.25″ (83mm) thickness, broad visibility and powerful output.
Modern design, with solid, sturdy look to best fit your vehicle.
New generation optics that meets ECE R65, SAE and NFPA.
Control your work-site with a flick of the switch.Product Specifications

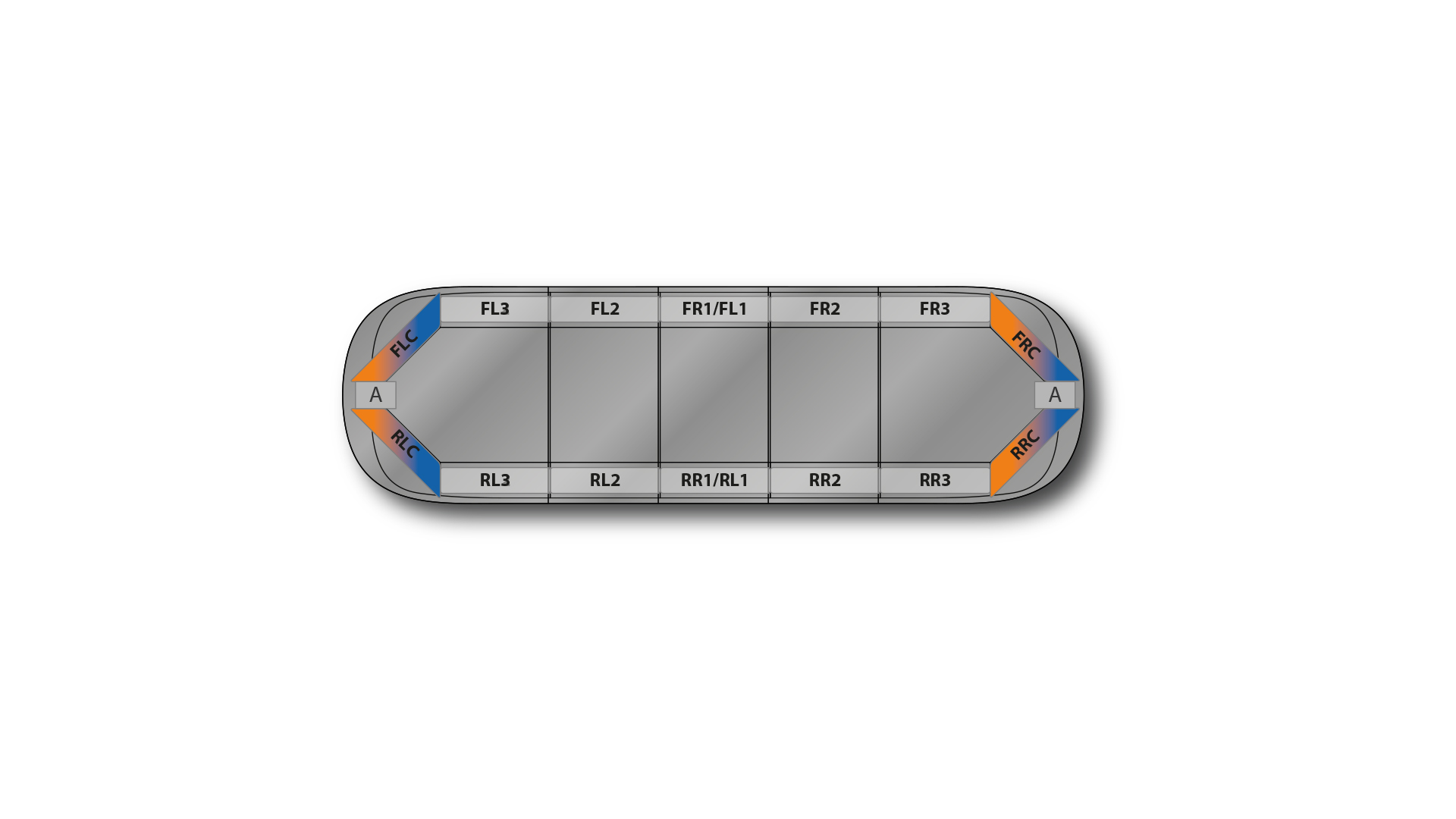

Product code 06060053 Product Name Aegis DC 1054mm (41.5") - ABK (12VDC) Categories Warning Lamps, Lightbars, Aegis DC Standard, Aegis Dual Colour, Aegis Product Type Products Configurations (available Alley Lights, Take-Downs, Traffic Director, Steady On Default Functions Right-Side Alley Light, Take-Down Lights (2 heads, Left-Side Alley Light, Hi/Low Power (50%, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Length 1054mm (42") Dimensions Height 83mm (3.25") Dimensions Width 310mm (12.2") Colour Type Dual Colour Maximum Current 21.2A@12.8VDC Lightbar Length 1054mm (41.5") LED Colour Amber LEDs, Blue LEDs Fuse Rating 29A Cover Colour Black Covers Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA2), ECE-R65 (TB2), SAE J845 Class 1, CA13 Input Voltage 12VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power) LED Quantity 72x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 15 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Net Weight 16.6kg Gross Weight 17.6kg Dummy Bracket Qty 8x Dummy Plates Warranty 5 Year Warranty -
